$799.00 $639.00

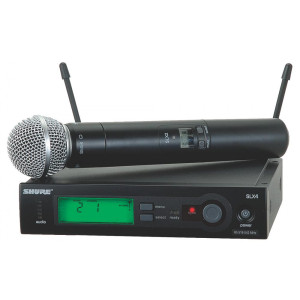

The SLX Series offers the next level of wireless performance. Systems include the SLX4 receiver with Auto Freq. Selection, 1/4"/XLR outs, infrared sync link, detachable antennas, backlit LCD, power/freq. lockout, rack-mount hardware, and metal construction. The SLX2 handheld transmitter features a backlit LCD, 8hr operation, and 300' range. 20 systems can be used simultaneously.

Audio Output Level (ref. +/– 38 kHz deviation with 1 kHz tone)
XLR connector (into 600 Ohm load): –13 dBV
1/4 inch connector (into 3000 Ohm load): –2 dBV

Output Impedance
XLR connector: 200 Ohms
1/4 inch connector: 1 kilohm

XLR output
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio

Sensitivity
-105 dBm for 12 dB SINAD, typical

Image Rejection
>70 dB, typical

Power Requirements
12 to 18 Vdc at 150 mA, supplied by external power supply

Dimensions
42 mm H x 197 mm W x 134 mm D (1.65 x 7.76 x 5.28 in.)

Weight
816 g (1 lb. 13 oz.)

Housing
Galvanized steel

Current Stock:
SKU:
SLX24/BETA58-G4
GTIN:
SLX24/BETA58-G4
MPN:
SLX24/BETA58-G4
Weight:
7.00 LBS
Width:
18.75 (in)
Height:
14.50 (in)
Depth:
3.50 (in)
